my self made cam gear from scania piston

Hi :wink: Maybe someone know on what Lift @ tdc V cam works good ? :roll: with stock cam gear it sits about 1mm lift at tdc on Intake,when instaled cam gear and found what if you want to open IN and EX the same max lift it gets ~1,25mm for both lobes. i want a better effect at higer RPM, engine spin...

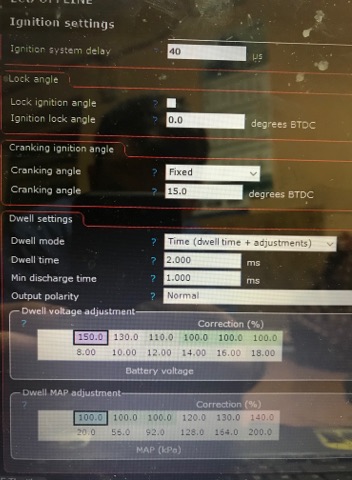

same question with " Huco 138425 2x2 coil" on b230 8v turbo, what setting you recomend for dwell on 1.5+bar charge and 350+hp 7000rpm ? spark plug gap 0.5-0.55

im saving the stock con rods, will try to reach 2bar in higher rpm in spring, now injectors are maxed out, and maybe will try V comb and bigger valves.
9.3cr how much boost it will be safe to charge on e85 ?

How much boost ? i had stock b230 with stock 531, A cam, split pulse mani and S200 54/58mm with 11cm housing,custom intake mani and on e85, 330hp@ 5000rpm 1.45bar ant then power curve stals to the end, feels like head dont breathe any more https://i.postimg.cc/25mvykFZ/42795-B23-8-C1-A-4-E6-B-B1-D4-...

7:1 compression ? why ?

Hi, i didint wanted to make new topic, have same vibrations problem at ~2500, custom ex manifold, made a bracket for turbo, downpipe fited to gearbox, flex pipe after WG, DP joined with V band after gearbox mount, then flex pipe and exhaust. https://s9.postimg.cc/fyufj8ne7/31790939_1797044063689213_...

8cm holset

Hi, need advice B230F stock bottom and 530head,A-cam, 875cc dekas, E85. Choosing a turbo, have a few options 1. H1e 54mm compressor 8blade with 64mm wheel + 8cm single scrool hot side 2. HX35 54mm 8blade with 12cm twin scrool hot side, ant cold side without antisurge exhaust manifold will be made ne...

stock LH 2.2 boshc 044, played only with fuel pressure, no ECU tuning.

in english please

[/quote]Är detta helt standard b230ft med standard 530 topp?[/quote]

yes, unopened B230ft K block with 9mm rods/ 530head, KL T2, 16t, LH2.2..

https://lh3.googleusercontent.com/u75lEqahlTGSlG8sh3xhE41GYbTu0Lj9Jb2WAmnZW_9UN-F6tCX0vXR4vsADa1EuEN8FZ3hSERjwED4v5Umq5bV_DEYM26JkE9b7bl6QdPaDiJTlbWOXLYBq_scrrpN2NjC-kBRwZENcdLc_meZt6j4b71mvgA2iwPYTKgH-XlRnjZbNV_OnOtkgIlf60_561iO2dolQhIq6qXVryUTnDAXmyJIk_jyB5cIr0Ux1in2Nu2xCmAKByOgAVpThNG3RWJcdx_Zz5...

went to dyno, and the results with cam adjusting and 1.2-1.3bar with 16t :thumbright: cam instaled like stock, on 0. v2 run 2 degrees advance v3 run 4 degrees advance v4 run 6 degrees advance https://s2.postimg.org/3jw8ivk95/18156379_1432009770192646_508399022577826137_o.jpg now need convert to LH2....

E46 with S54B32 from Lithuania for drifting, 1000+hp/nm
https://www.youtube.com/watch?v=czr6BdGuaBI
